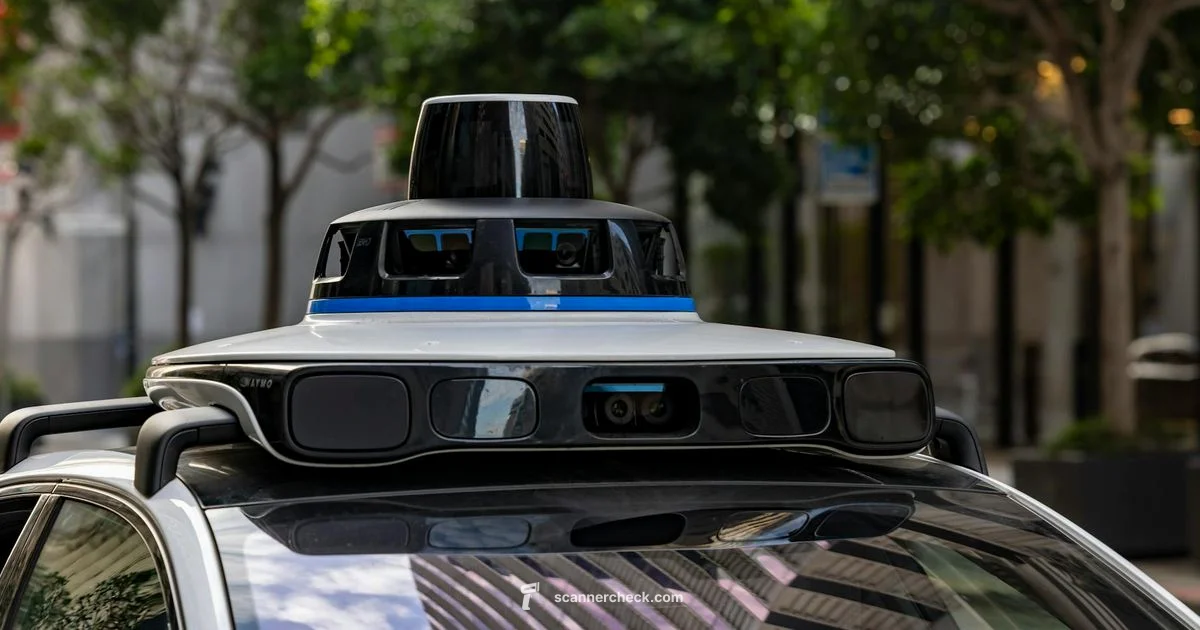

Lidar Scanner Guide: How It Works and Where It Is Used
Explore lidar scanners, how they work, key specs, and practical tips for selecting and using them in robotics, surveying, and autonomous systems.
Lidar scanner is a sensor that uses laser light to measure distances and create precise 3D maps. It is a type of active imaging device used in robotics, surveying, and autonomous systems.
What makes lidar scanning unique
Lidar scanning is defined by a sensor that emits laser pulses and measures their return times to determine distances. Each pulse that returns data contributes to a point cloud, which can be stitched into a dense 3D model of a scene. Unlike passive imaging, lidar actively emits energy, so it can operate in low light and deliver consistent geometric information even in complex environments. In practical terms, lidar scanners are used to capture precise geometry from buildings, landscapes, vehicles, and machinery, enabling quantitative analysis and digital twins. The combination of speed, accuracy, and the ability to scan from a distance makes lidar a core technology in robotics, surveying, and autonomous systems. As a field, lidar scanning blends hardware, software, and data science to turn real world geometry into actionable information for designers, engineers, and researchers.
How lidar works in practice
Lidar scanning works by emitting short pulses of laser light and recording the time it takes for each pulse to bounce back from surfaces. The elapsed time is converted into a distance, and thousands or millions of such measurements are collected from different angles as the sensor rotates or as a solid state device directs beams with micro mirrors. The result is a three dimensional point cloud that represents the scene with real world scale and geometry. Different lidar designs use time of flight or phase shift methods, and they typically operate with near infrared wavelengths to balance safety and performance. Because the sensor is emitting energy, it can function in darkness and in varied lighting conditions. Calibration aligns angular measurements with known references, while filtering removes stray returns. In many projects, lidar data are combined with color from cameras or height data from GPS to provide richer context.
Core specifications you will encounter
When comparing lidar scanners, several specifications determine how well a device will fit a project. Field of view and angular resolution influence how much of a scene is captured and how finely details are resolved. The scan rate or rotation speed affects how quickly data is collected and how smoothly a model updates in motion. Range describes the farthest usable distance under typical conditions, while surface reflectivity and material properties determine how strong returns are. The wavelength and beam divergence influence performance in dusty or rainy environments and affect the size of individual data points. Practical considerations also include form factor, power requirements, interfaces ( USB, Ethernet, CAN ), and the quality of the software ecosystem that accompanies the hardware. Finally, verify data formats and compatibility with your analysis tools to ensure a seamless workflow from capture to export.
Lidar versus other sensing technologies
Lidar is often compared with radar, cameras, and structured light systems. In general, lidar provides higher spatial detail and precise three dimensional coordinates, but weather and adverse lighting can influence performance and reliability. Cameras excel at capturing color and texture but require complex stereo or monocular depth estimation to produce a usable 3D model. Radar offers robust operation in fog, rain, and dust and can detect objects at longer ranges, but its spatial resolution is typically lower. Structured light works well indoors for detailed surface scanning but struggles outdoors. In modern deployments, teams frequently use sensor fusion to combine lidar with cameras or radar, leveraging each technology's strengths to achieve reliable perception in real world conditions.
Real world applications across industries
Lidar scanners enable accurate digital representations of physical spaces and objects. In robotics, they support navigation, obstacle avoidance, and mapping for autonomous systems. In construction and architecture, lidar underpins as built surveys, site verification, and progressive monitoring of projects. In surveying and geospatial work, lidar accelerates topographic mapping and volume calculations. In forestry, lidar reveals canopy structure and height patterns that inform ecological studies. In archaeology, lidar can reveal subtle landforms hidden by vegetation. According to Scanner Check analysis, lidar technology continues to expand into education and hobbyist use as devices become more compact and affordable, broadening access to high quality spatial data.
How to choose a lidar scanner for your project
Start with a clear use case and a realistic budget. If you need fine detail and dense point clouds, prioritize higher resolution and robust data processing capabilities, even if that increases cost. Consider the tradeoffs between range, field of view and scan rate: wide coverage can require more processing power and storage. Weather resilience, ruggedness, and IP or ingress ratings matter for outdoor work, while a compact form factor helps in portable setups. Check the software ecosystem, documentation, and available drivers to ensure smooth integration with your existing workflow. Finally, plan for data management by estimating data volumes and storage, as lidar data can be substantial and may require cloud or local processing strategies.
Data handling and processing workflows
Captured lidar data typically arrives as a vast point cloud that must be cleaned, aligned, and organized for analysis. Common processing steps include noise removal, alignment of multiple scans, and registration into a common coordinate frame. Many teams rely on open source toolkits and commercial software to perform filtering, segmentation, surface reconstruction, and visualization. Data is often stored in standard formats such as LAS, LAZ, and PCD, with metadata for timestamp and sensor position. Visualization tools enable quality checks and export to CAD or GIS platforms for downstream use. When combining lidar with other sensors, practitioners build fusion pipelines that attach color, height, or semantic labels to points. For hobbyists, entry level software can support basic modeling, while professionals may use enterprise suites and cloud processing.
Common challenges and best practices
Calibration drift and misalignment can undermine accuracy, so schedule regular calibration checks and maintain meticulous documentation of sensor setups. Occlusions and materials with low reflectivity yield weak returns or shadowed regions that require additional scans or alternative viewpoints. Environmental conditions such as fog, rain, or dust limit range and data quality, so plan around weather or use protective housings and filters. Motion during capture introduces blur and misregistration; use stable mounts and shorter acquisition windows when possible. Data management is another practical concern; lidar generates large files that must be stored securely and organized for easy retrieval. Following standardized workflows, validating results with ground truth, and cross checking with other sensors reduce risk and improve confidence.
The road ahead in lidar technology
Industry observers expect continued improvements in performance, affordability, and accessibility. Solid state and compact lidar architectures promise smaller, more rugged devices with fewer moving parts and easier integration into consumer devices. Advances in software and machine learning will push lidar from data collection toward real time perception and decision making. Wider adoption in smart cities, robotics, and environmental monitoring will drive ecosystem growth, standardization, and cross platform interoperability. As the technology matures, form factors will vary from handheld units to fixed installation sensors, enabling lidar to reach new applications in education, manufacturing, and geospatial analysis.
Common Questions
What is a lidar scanner and how does it work?
A lidar scanner is a sensor that emits laser pulses and measures their return times to calculate distances. It produces a point cloud that maps 3D space. The data can be combined with color or height information to create rich models for robotics, surveying, and design.
A lidar scanner fires laser pulses and measures how long they take to return, creating a 3D map. It is an active sensor used in robotics and surveying.
How does lidar compare to radar or cameras?
Lidar generally provides higher spatial detail and accurate 3D measurements but can be affected by weather and lighting. Cameras capture color and texture but require depth estimation. Radar offers robust performance in poor visibility and longer ranges but with lower detail. Many systems fuse these sensors for reliability.
Lidar gives precise 3D data, but weather can affect performance. Many setups fuse lidar with cameras or radar for reliability.
What factors affect lidar range and accuracy?
Range and accuracy depend on the laser wavelength, beam width, scanning pattern, and surface reflectivity. Surfaces that absorb light reduce returns, while highly reflective surfaces boost them. Outdoor conditions like fog or rain can degrade measurements.
Range and accuracy rely on beam width, pattern, and surface reflectivity. Weather can reduce data quality.
Is lidar safe for eyes and everyday use?
Most lidar systems use eye safe near infrared light and comply with safety classifications for general use. However, essential guidelines and proper labeling should be followed, especially in industrial environments or with high power configurations.
Lidar generally uses eye safe light and follows safety guidelines; follow manufacturer labels and local rules.
What are common lidar applications across industries?
Lidar finds use in autonomous vehicles, robotics, mapping, surveying, forestry, and archaeology. It enables accurate 3D models of scenes and objects, supporting analysis, planning, and decision making.
Common uses include robotics, surveying, and autonomous navigation.
What should I consider when buying a lidar scanner for a hobbyist setup?
For hobbyists, define your project scope and budget first. Look for a balance of price, range, resolution, and software support. Ensure adequate documentation and user community resources are available to help you get started.
Define your project, check price and features, and rely on good software support and community help.
Key Takeaways
- Define your use case before selecting a lidar scanner
- Expect tradeoffs between range, resolution, and price
- Leverage sensor fusion to improve reliability
- Plan for data management due to large lidar datasets
