How to Clean HP Scanner Rollers: Step-by-Step Guide
Learn how to safely clean HP scanner rollers to restore feed reliability and image quality with practical, non-destructive steps and maintenance tips.
You will learn how to safely clean HP scanner rollers to restore feed reliability and image quality. This guide covers non-destructive cleaning, model-agnostic steps, and best-practice timing for how to clean scanner rollers hp. You’ll need a lint-free cloth, isopropyl alcohol, and a soft brush. Unplug the device, follow the steps, and dry thoroughly before use.
Why HP Scanner Rollers Accumulate Dust and Oil
The role of the rollers is to push paper through the scan path with consistent grip. Over time, dust, fingerprints, and tiny bits of paper cling to the rubber surface. Oils from fingers can transfer to the roller during normal handling, creating a slick patch that reduces traction and causes uneven feeding. When these contaminants build up, you may notice faint streaks in scans, occasional misfeeds, or pages that mount at odd angles. Regular cleaning helps maintain smooth operation and crisp image quality. According to Scanner Check, routine maintenance not only preserves performance but also reduces the likelihood of jams and uneven feed across frequently used devices. The goal is to remove surface contaminants without altering the roller's shape, tension, or adhesive properties. In most HP scanners that use sheet-fed feeds, you’ll typically find a feed roller and a pick roller. Debris tends to accumulate at the edges where the paper contacts the surface. Understanding these dynamics helps you target your cleaning without risking components behind the panel. If you are searching for how to clean scanner rollers hp, this guide will outline safe, model-agnostic steps you can apply to most HP devices.
Safety First: What You Can Safely Clean and What to Avoid
Safety comes first when maintenance work on scanners. Always unplug the device and disconnect from any power source before touching internal parts. Remove the power cord from the wall outlet for good measure. Work on a clean, dry surface away from liquids. Do not spray water or solvents directly on the rollers or inside the housing; liquids can seep into the electronics and coatings. Use a damp cloth only, and never saturate the rollers. If you need to use compressed air, operate in short bursts from a safe distance to avoid blowing debris deeper into the unit. Wear eye protection if you work around loose paper or dust. After cleaning, allow a few minutes for any solvent to evaporate before powering the device back on. These precautions minimize risk and preserve the integrity of the roller surfaces and the feed mechanism.
Tools and Materials You’ll Need
Having a clean, dedicated cleaning kit makes the process faster and safer. You will typically use a lint-free microfiber cloth to wipe surfaces, isopropyl alcohol 70% to break up oils, and a soft brush or cotton swab for stubborn residues. A can of compressed air can help remove loose dust from tight corners, but use it cautiously. Optional gloves can protect your hands and reduce the chance of leaving fingerprints on sensitive parts. Sit the device on a clean, stable surface and ensure good lighting so you can see all areas of the rollers.

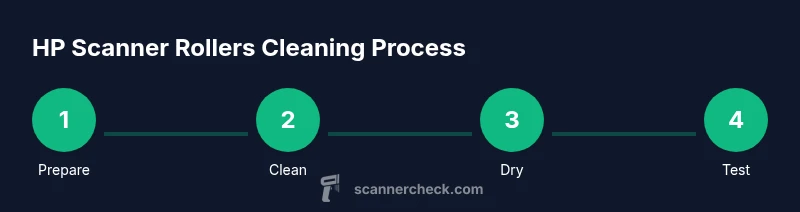

Step-by-Step Cleaning Overview
This section outlines the high-level plan you will follow to clean HP scanner rollers safely. The process minimizes disassembly and focuses on cleaning the accessible surfaces and feed path. Start by powering down and unplugging the device, then access the roller area according to your model's manual. Remove loose debris, then clean with a cloth dampened with isopropyl alcohol. Finally, dry thoroughly and run a test scan to confirm results. If you notice persistent issues, repeat specific steps on the affected area. This approach aims to restore grip and prevent streaks without affecting the roller mechanics.
HP-Specific Considerations: Model Variations and Warranty
HP flatbed and sheet-fed scanners can differ in how accessible the rollers are. Some models expose the rollers with a simple lid lift, while others require removing a side cover. Always consult your manual or HP’s official support resources before attempting disassembly. Routine cleaning with mild cleaners is generally safe and should not void warranties when performed according to the manufacturer’s guidelines. If your model has a service agreement or warranty, consider performing the cleaning with the device powered off and unplugged, and avoid aggressive disassembly or liquid immersion.
Maintenance Frequency and Best Practices
To maintain consistent performance, establish a regular cleaning cadence. A monthly routine works well for most environments, while dusty or high-use settings may benefit from biweekly checks. After cleaning, test several pages with different paper types to ensure feeds are smooth and scans are clean. Keep a small, dedicated cleaning kit nearby and document your maintenance in a log so you can track improvements and when issues recur. Consistency is key to preserving image quality and preventing long-term wear on the rollers.
Tools & Materials
- Lint-free microfiber cloth(Prefer lint-free, non-shedding cloth. Avoid fabrics that shed fibers.)
- Isopropyl alcohol 70%(Dampen cloth, do not apply directly to rollers.)
- Soft brush(Gentle brush for dry dust in crevices.)
- Compressed air can(Short bursts from a safe distance.)
- Gloves(Protect hands and minimize fingerprint transfer.)
Steps
Estimated time: 20-30 minutes
- 1
Power down and access the rollers
Unplug the scanner and disconnect from power. Allow any residual heat to dissipate if recently used. Open the lid or access panel per your model’s manual to reach the roller area.
Tip: Always disconnect power before touching internal parts. - 2
Remove loose debris
Use a dry brush or compressed air to dislodge dust and fragments from the roller surface and surrounding housing. Do not use liquids at this stage to avoid dripping into the electronics.
Tip: Rotate the roller by hand to expose all edges and crevices. - 3
Clean the rollers
Dampen a lint-free cloth with isopropyl alcohol and gently wipe the roller surface. Rotate the roller to clean the full circumference. Avoid soaking the cloth or letting liquid pool near bearings.
Tip: Apply light, even pressure to prevent roller deformation. - 4
Clean adjacent components
Wipe tension arms, guides, and the feed path with the same cloth. Debris here can transfer back to the rollers and affect performance.
Tip: Be mindful of nearby sensors and gears; do not dislodge them. - 5
Dry and reassemble
Let any residual moisture evaporate completely for about 5–10 minutes. Reassemble covers, reconnect power, and prepare to run a test scan.
Tip: Ensure the device is completely dry before powering on. - 6
Test with sample pages
Run several scans with different paper types to confirm smooth feeding and image quality. Note any streaks or jams and adjust cleaning focus as needed.
Tip: If streaks persist, re-clean the affected area with careful attention to edges.
Common Questions
How often should I clean HP scanner rollers?
Clean monthly or after heavy use, and more often in dusty environments. This helps prevent feed jams and streaks.
Clean monthly or after heavy use, and more often in dusty environments. It helps prevent jams and streaks.
Can I use water to clean the rollers?
No. Use a lint-free cloth with isopropyl alcohol. Water can loosen adhesives or damage coatings.
No water; use a lint-free cloth with isopropyl alcohol.
Will cleaning void my HP warranty?
Routine cleaning with mild cleaners is generally safe, but check your warranty terms for specifics.
Most warranties tolerate standard cleaning; verify terms for your model.
What if the rollers are sticky or worn after cleaning?
If you still notice stickiness or reduced performance after cleaning, consider replacing the rollers or seeking HP support.
If still sticky or poor performance after cleaning, consider replacement or support.
Should I disassemble my scanner to access rollers?
Only follow model-specific guidance. Incorrect disassembly can void warranties or cause damage.
Only disassemble if your model guide says so.
Is this cleaning approach applicable to non-HP scanners?
General cleaning steps are similar, but refer to your device's manual for model-specific instructions.
Basic cleaning steps are similar, but check your manual.
Watch Video
Key Takeaways
- Power down before cleaning and unplug.
- Use a lint-free cloth with isopropyl alcohol.
- Dry rollers completely before use.
- Test scans to confirm improvements.
- Incorporate cleaning into routine maintenance.
