How to Fix Scan Lines on an HP Scanner: A Practical Guide
Learn practical, proven steps to remove scan lines from HP scanners, covering cleaning, calibration, driver updates, and when to seek service for persistent issues.
To get rid of lines on an HP scanner, start with thorough cleaning, calibrate the scanner, and verify software settings. The key requirements are a lint-free cloth, isopropyl alcohol, a soft brush, fresh drivers, and the latest HP scanning software. If lines persist, test different media and run a calibration or service check as needed.
Understanding Why Lines Appear on HP Scans
If you’re dealing with visible horizontal or vertical lines in scans from an HP scanner, you’re not alone. Cleaning, calibration drift, and light-source irregularities are common culprits. According to Scanner Check, many line artifacts originate from surface contaminants on the glass or from minor calibration drift rather than a failed sensor. This makes most line issues solvable with a structured troubleshooting approach. Distinguishing between faint specks, streaks, and true lines helps you pick the right fix. Start by noting where lines appear: across the entire image, in a specific band, or only with certain media. This pattern hints at whether the problem is glass contamination, degree of calibration, or settings in the software. With the right steps, you can often restore clean scans without expensive repairs. Remember: the goal is repeatable, predictable results across different documents and media.
Quick Checks Before Deep Cleaning
Before you dive into cleaning or calibration, perform a few quick checks to isolate the issue. First, scan a plain white sheet at 300 dpi in grayscale to establish a baseline. If lines appear only in color or at higher resolutions, the problem may be in color channels or interpolation rather than the glass. Inspect the glass with good lighting for dust, smudges, or scratches. Clean the surface with a lint-free microfiber cloth lightly dampened with isopropyl alcohol, wiping in straight lines. If you use a cleaning brush or canned air, do so gently to avoid pushing debris into seams. Finally, ensure you’re using the latest HP software and drivers, as outdated software can introduce artifacts.
Cleaning and Calibration Essentials
Cleaning is usually the quickest return to clean scans. Start with the glass surface and the edges where fingerprints accumulate. Use a microfiber cloth with IPA and wipe in a single direction to avoid streaks. Don’t spray liquids directly onto the glass. Dry thoroughly before testing. Clean the lid interior and any accessible optical path housings to ensure dust isn’t re-deposited during scans. After cleaning, run a calibration in the HP software. A color or grayscale calibration aligns the sensor to the imaging path and can dramatically reduce line artifacts. If the scanner offers a built-in alignment feature, run it as well. Keep in mind that some line patterns may persist due to minor hardware misalignment, which could require professional service.
Software, Drivers, and Calibration Tools
Driver and firmware health play a critical role in image quality. Visit HP’s support site to download the latest drivers and full-feature software for your scanner model. Reinstall the software if you notice driver corruption or unusual behavior. Use the calibration or alignment tools included in the HP software suite; run both color and grayscale calibrations if available. Some scanners provide a ‘Cleaning’ utility that should only be used when indicated by the manual. If lines persist after calibration and software updates, consider testing with a different computer to rule out PC-side artifacts. Keep an eye on HP’s knowledge base for model-specific tips and known issues.
Hardware Considerations: When to Seek Service
If you’ve completed cleaning and calibration steps but still see lines, the fault could lie in hardware components such as the optical assembly or sensor. Visible lines that repeat in the same location across multiple scans are a strong signal of internal wear or misalignment. Check warranty status and HP support options for a service assessment. Some issues can be resolved by replacing a faulty imaging sensor or re-lubricating a moving part, but these steps typically require professional service. If you rely on the scanner for professional work, you may want to request an on-site diagnostic or a mail-in service to minimize downtime.
Fine-Tuning Scan Settings for Best Results
After addressing hardware and cleaning, fine-tune your scan settings to minimize reoccurrence of lines. Scan at a fixed, moderate DPI (e.g., 300–600) and prefer grayscale for text documents; reserve color for images. For OCR workflows, enable sharpness enhancements only as needed to avoid artifact amplification. If you routinely scan mixed media (text, forms, photos), save presets for each type. Finally, consistently scan on clean, white media and avoid glossy or highly textured surfaces, which can reveal subtle lines that mask as artifacts.
Tools & Materials
- Lint-free microfiber cloth(For glass surfaces; avoid leaving fibers.)
- Isopropyl alcohol (70%+)(Moisten cloth lightly; never spray directly on glass.)
- Soft brush or canned air(Gently dust hard-to-reach areas; avoid blowing debris into the sensor.)
- HP scanning software with latest drivers(Ensure full-feature software is installed.)
- Clean white test pages(Use plain paper to establish baseline scans.)
- Alternative media for testing(Helps identify media-specific artifacts.)

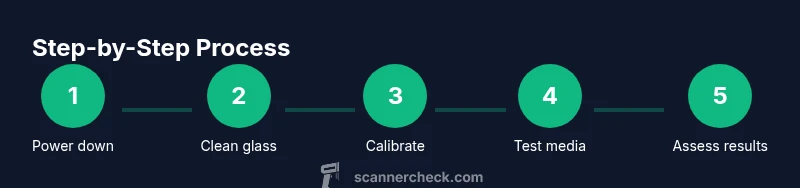

Steps
Estimated time: 60-90 minutes
- 1
Power down and unplug
Turn off the scanner and disconnect from power and the computer. Wait 30 seconds to discharge capacitors before handling any components.
Tip: Unplugging reduces the risk of static damage during cleaning. - 2
Open and inspect the glass area
Look for obvious dust, smudges, or scratches on the glass. Note any patterns that may indicate edge leakage or streaks.
Tip: Use a bright light to catch thin dust specks you might miss initially. - 3
Clean the glass surface
Dampen a microfiber cloth with isopropyl alcohol and wipe the glass in straight, single-direction strokes. Avoid circular motions that can distribute residue.
Tip: Dry with a second clean cloth to prevent streaks. - 4
Clean lid edges and seals
Wipe interior edges and seals where dust accumulates and can transfer to the glass during scanning. Keep these areas dust-free.
Tip: Check for loose seals; a loose seal can introduce dust during scans. - 5
Remove loose dust with gentle air
Use canned air or a soft brush to dislodge particles from crannies around the optical path. Hold the can upright and short bursts.
Tip: Do not tilt the can or spray from close range; moisture can be sprayed onto optics. - 6
Update drivers and firmware
Download and install the latest HP drivers and full-feature software. Reboot after installation to ensure updates take effect.
Tip: Choose the recommended driver package for your model, not generic print drivers. - 7
Run calibration and alignment
Open HP scanning software and run color and grayscale calibrations if available. Align the imaging path as prompted by the tool.
Tip: If multiple calibration modes exist, start with grayscale for text-based documents. - 8
Test with diverse media
Scan plain paper, then a lined notebook, and finally a photo print. Observe whether lines persist across media types.
Tip: If lines appear on only certain media, adjust media type settings in the software. - 9
Evaluate the need for professional service
If lines persist after all steps, hardware wear or sensor issues are possible. Check warranty and contact HP for a diagnostic.
Tip: Preserve your receipt and warranty documents; service options vary by model.
Common Questions
Why do lines appear in HP scanner scans?
Lines usually result from surface dirt, calibration drift, or light-source irregularities. Inspect patterns to distinguish glass contamination from sensor issues and follow a structured cleanup and calibration process.
Lines are often caused by dirt or calibration drift. Start with cleaning and calibration to see if the issue resolves.
Will cleaning the glass fix line problems?
Cleaning the glass removes surface debris that can imprint lines during scans. If lines persist after cleaning, calibration or hardware checks are likely involved and may require further steps.
Cleaning helps a lot, but persistent lines may need calibration or professional service.
Do driver updates help with scan lines?
Yes. Up-to-date drivers ensure the scanner’s imaging pipeline operates correctly and reduces software-induced artifacts. Always install the latest full-feature HP software for best results.
Driver updates often fix software artifacts and improve scan quality.
What if calibration doesn’t solve the issue?
If calibration fails or lines return after several attempts, hardware wear or misalignment may be the cause. Check warranty options and contact HP support for a diagnostic.
If calibration keeps failing, hardware wear is likely; contact HP support.
Could sensor wear cause persistent lines?
Yes, long-term use can degrade sensor alignment or the optical path. A professional assessment may be necessary if lines persist after cleaning and calibration.
Sensor wear can cause ongoing lines; you may need a professional check.
When should I contact HP support or a technician?
If no steps resolve the issue and the printer is under warranty, contact HP support for a diagnostic or service. Document the issues and efforts you’ve made.
If problems persist, reach out to HP support for repair options.
Watch Video
Key Takeaways
- Clean the glass and optics thoroughly to remove lines.
- Update drivers and calibrate the scanner for best accuracy.
- Test with various media to confirm results.
- Consider professional service if lines persist after steps.
