How to Install a Scanner in Ground Stalker 2
Learn how to install a scanner module into Ground Stalker 2, including compatibility checks, mounting, wiring, calibration, and testing for reliable field scanning. This comprehensive guide from Scanner Check covers tools, step-by-step actions, safety tips, and troubleshooting.
To install a scanner module in Ground Stalker 2, you’ll verify compatibility, install the mount, connect the data and power interfaces, and calibrate the sensor for reliable field scanning. This step-by-step guide covers tool prep, electrical safety, and testing to ensure accurate readings. Expect a moderate install time and the need for basic mechanical and electrical skills.
Compatibility and planning
Installing a scanner in Ground Stalker 2 begins with compatibility checks and careful planning. Before you touch a screw, confirm that your scanner module, mounting kit, and the Ground Stalker 2 share compatible data interfaces and power requirements. Ground Stalker 2 vehicles typically rely on a 5–12 V power supply and a digital data bus for sensors; your scanner should match or be adaptable with a straightforward converter. According to Scanner Check, successful integrations start with a clear plan: confirm available space, identify mounting points, and map data and power paths to avoid rework. In this section you’ll assess space constraints, determine whether a custom bracket is needed, and decide how you will route cables to keep moving parts unobstructed. You’ll also set expectations for weight, balance, and accessibility for maintenance. By front-loading compatibility checks, you reduce installation time and frustration, enabling you to move confidently into the mounting phase.
Selecting the right scanner module
Choosing the right scanner module is about matching interface, performance, and environmental tolerance to Ground Stalker 2’s operating conditions. Look for an interface the robot can support natively (such as USB-C, UART, or SPI), verify the voltage range and current draw, and confirm driver availability in the system firmware. Evaluate scan resolution, line rate, and field of view to ensure reliable reading of labels or barcodes under typical lighting and motion. Consider environmental ratings (dust, moisture, shock) and the scanner’s mechanical dimensions to fit your mounting area without interfering with wheels, sensors, or actuators. Finally, ensure the data format is compatible with the Ground Stalker 2’s data bus and that you can access logs for troubleshooting. A well-chosen module minimizes integration friction and accelerates testing.
Mounting considerations and enclosure
Mounting is more than bolting a box to a frame. Plan for a rigid, vibration-damped installation that maintains scanner alignment during operation. Start by selecting a mounting bracket that matches the scanner’s footprint and Ground Stalker 2’s chassis. Use vibration-damping spacers or foam to reduce micro-movements that could blur readings, and align the scanner so its optical path is unobstructed by legs, camera housings, or other sensors. Ensure cool air can circulate around the unit and that cabling exits neatly to prevent snagging on moving parts. If possible, position the scanner so routine maintenance tasks remain easy and safe. After mounting, verify that the unit remains level and that the mounting hardware is tightened to the manufacturer’s torque recommendations.
Wiring and electrical integration
Electrical integration is the heart of a reliable install. Power the scanner module within its rated voltage range, and avoid overloading Ground Stalker 2’s power bus. Use shielded cables for data lines and keep data and power wires separate from motor leads to minimize electrical noise. Ground loops can cause intermittent readings, so connect a common ground point and route wires away from heat sources and moving components. Label each connector clearly and retain spare lengths for future maintenance. Use proper connectors and strain relief to prevent voltage drops when the ground stalks shift during operation. If your setup supports it, add ferrite beads on data lines to reduce high-frequency noise and improve signal integrity.
Configuration and software integration
Once wired, you’ll configure the scanner in Ground Stalker 2’s firmware or control software. Identify the correct port or interface, set the baud rate or data speed, and select the scanner profile that matches your module. Some platforms require calibrating the scanner’s address or establishing a specific data packet format. Save configuration changes and verify that the ground unit can initialize the scanner on boot. Keep a log of firmware versions and settings to simplify future updates. If you encounter driver issues, check for firmware compatibility notes from the module manufacturer and verify that any required firmware patches are applied.
Calibration and testing routines
Calibration aligns the scanner’s field of view with Ground Stalker 2’s reference frame. Start by establishing a known target at a fixed distance and capture multiple scans to determine offset angles. Adjust the scanner mount in small increments and re-run scans to verify readings align with the reference target. Record calibration values in your maintenance log and note any environmental factors that could affect accuracy, such as lighting or vibrations. Perform a functional test with typical targets (barcodes, QR codes, or labels used in your workflow) to confirm consistent read success across different angles and distances. If readings drift, revisit mounting stability and signal integrity before re-calibrating.
Safety and best practices
Safety comes first. Power down Ground Stalker 2 before mounting or wiring, and disconnect any connected power sources to avoid shock. Use ESD-safe procedures when handling electronic components and wear appropriate eye protection during mechanical work. Do not over-tighten mounting hardware, which could damage brackets or chassis. Route cables to prevent pinching and ensure that moving parts have adequate clearance. Keep a clean work area and test in a controlled environment before field deployment. If you’re unsure about any step, pause and consult operator manuals or a safety-focused guide.
Maintenance and troubleshooting
Post-installation maintenance helps preserve performance. Periodically inspect mounting hardware for looseness, test read reliability with fresh targets, and verify that connectors are clean and corrosion-free. If readings become erratic, check for loose cables, damaged shields, or sign of wear on the mounting bracket. Use a portable multimeter to verify voltage at the scanner connector and confirm that the power supply remains within spec. Keep spare connectors and bracket screws on hand, and log all maintenance activities. For persistent issues, re-run calibration and re-check software settings to rule out configuration drift.
Final checks and documentation
Before putting Ground Stalker 2 back into service, perform a final audit of all components and records. Confirm that the scanner is securely mounted, wired correctly, and calibrated for the expected field conditions. Update your maintenance log with installation date, part numbers, firmware versions, and calibration values. Create a brief checklist for the operator that includes how to verify scanner functionality during routine checks. Archive any diagrams or photos from the installation to simplify future upgrades and troubleshooting. A well-documented installation reduces downtime and helps you reproduce the setup if you replace hardware or upgrade software.
Tools & Materials
- Screwdriver set (Phillips and flathead)(Phillips #2 and flathead for bracket screws)
- Torx driver set(Helpful for some brackets)
- Mounting bracket compatible with Ground Stalker 2(Ensure size and hole pattern fit the scanner)
- Scanner module with data interface (USB-C, UART, or SPI)(Match to your Ground Stalker 2 interface)
- Power supply or battery pack (5–12 V)(Check current draw of the scanner)
- Wire harnesses/adapters(Include shielded data cables)
- Multimeter(For voltage and continuity checks)
- Cable ties and electrical tape(Cable management and insulation)
- Isopropyl alcohol (IPA) and lint-free wipes(For connector cleaning)
- ESD-safe wrist strap(Prevent static damage)

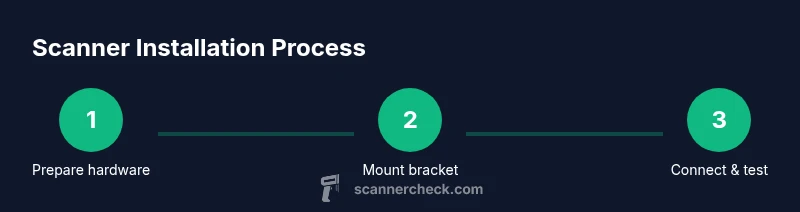

Steps
Estimated time: 1.5-3 hours
- 1
Prepare workspace
Clear a stable work area and gather tools. Inspect Ground Stalker 2 for accessibility to the intended mounting location and ensure you have clear space to route cables without interference.
Tip: Lay out components in the order they will be installed to minimize backtracking. - 2
Power down and isolate
Fully power down Ground Stalker 2 and disconnect any battery or power sources. Use an ESD-safe environment to prevent static damage during handling.
Tip: Verify there is no residual voltage before touching connectors. - 3
Mount the bracket
Attach the mounting bracket to Ground Stalker 2 in a location with a clear line of sight for the scanner. Align holes precisely and snug the screws to avoid misalignment during vibration.
Tip: Check for level mounting using a small spirit level or digital inclinometer. - 4
Connect data and power harness
Route the scanner’s data and power cables to the bracket, connect to the appropriate ports, and secure with cable ties. Ensure shielded data lines are properly terminated and grounded.
Tip: Avoid sharp bends in cables and maintain a minimum bend radius. - 5
Configure basic settings
Power up and access the Ground Stalker 2 configuration interface. Set the scanner interface type, baud rate, and enable the scanner module in the system.
Tip: Document port settings for future maintenance. - 6
Calibrate orientation
Calibrate the scanner’s orientation to align with Ground Stalker 2’s chassis reference. Use a known target at a fixed distance and adjust for offset until readings are consistent.
Tip: Record the offset values for future recalibrations. - 7
Run initial diagnostics
Perform a controlled test with representative targets. Verify that barcodes or labels are read reliably across the expected range and angles.
Tip: If readings are inconsistent, re-check mounting stability and shield connections. - 8
Document and finalize
Update the installation log with part numbers, firmware versions, and calibration data. Create a checklist for ongoing verification.
Tip: Store photos and diagrams for quick future reference.
Common Questions
Is a specific scanner model required for Ground Stalker 2?
Not strictly; ensure the interface and power draw match Ground Stalker 2’s requirements and that drivers are available for your firmware.
You don’t need a brand-new model, just one that matches the interface and power needs.
What interfaces are supported for data transfer?
Common options include USB-C, UART, or SPI. Verify which interface is supported by Ground Stalker 2 and your scanner module.
Supported interfaces include USB-C, UART, or SPI—check your device specs.
Do I need to modify the chassis to fit the scanner?
Only if the mounting location requires a custom bracket. Plan ahead and use brackets that preserve clearance for moving parts.
Only if necessary; use a bracket that fits the space without obstructing motion.
How long does the installation take?
Time varies with hardware and mounting location. Plan for 1.5 to 3 hours including calibration and testing.
Expect about one to three hours depending on setup complexity.
What maintenance is required after installation?
Regularly inspect mounting, connectors, and cabling. Recalibrate if readings drift or after firmware updates.
Check mounts and cables periodically and recalibrate when needed.
Can I remove the scanner later without issues?
Yes. Follow the reverse of the installation steps, label cables, and store hardware safely for future reuse.
Absolutely—uninstall by undoing mounting screws and retracing the wiring.
Watch Video
Key Takeaways
- Verify compatibility before mounting.
- Secure mounting to prevent vibration.
- Label wires for future maintenance.
- Calibrate after installation.
- Test thoroughly with real targets.
